Witam
Na zajęcia mam zrobić taki projekt :
"11. Program – stoper, z komunikacją z PC: obsługa klawiszy klawiatury matrycowej: 1 – start; 2 – stop; 3 – wznów; 4 – kasuj; 5-wyślij do PC;"
Posiłkuje się tą stroną :
http://extremeelectronics.co.in/avr-projects/avr-project-digital-stop-watch-with-atmega8/
Obsługa klawiatury w ogóle nie działa.
Zaczyna liczyć dopiero gdy się dotknie obojętnych pinów.. (nie wiem jakiś prąd zwarcia go startuje ??)

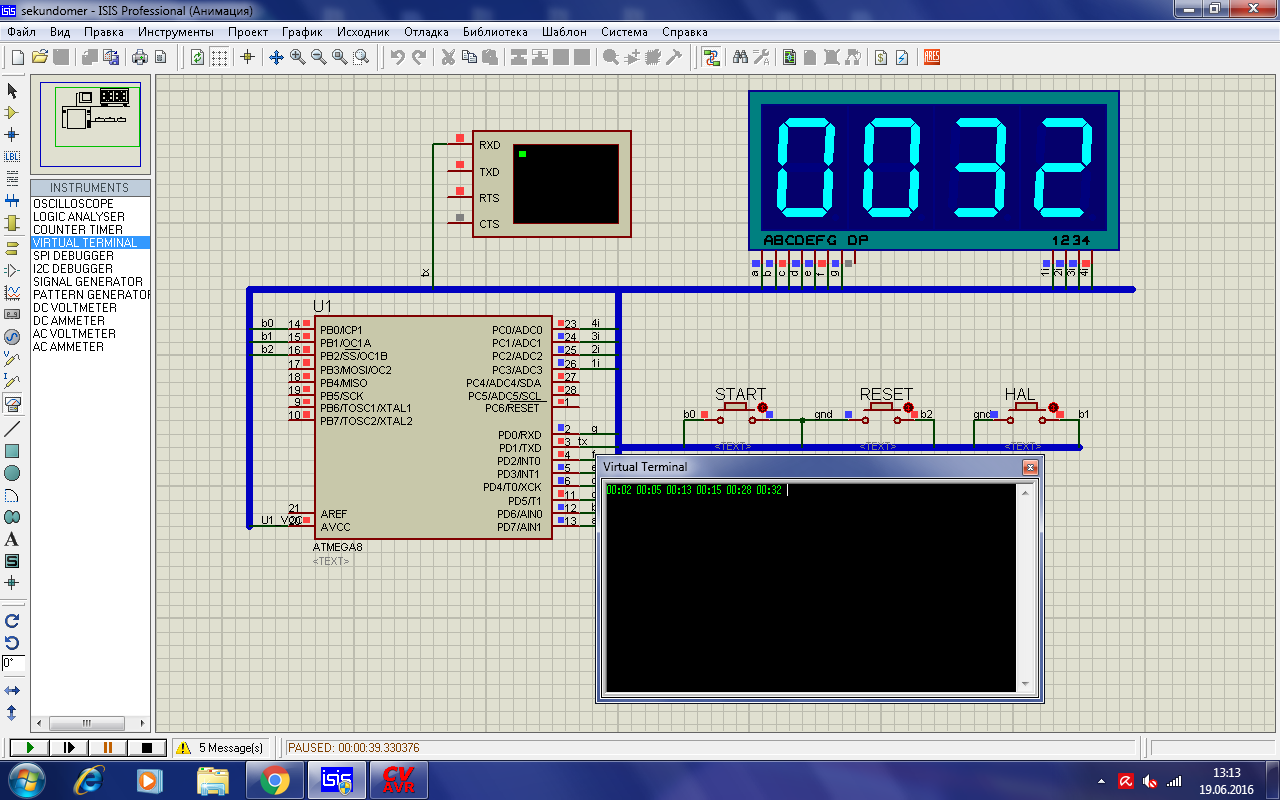

W załączniku filmik z działania...
Tak to ma mniej więcej wyglądać :
https://www.youtube.com/watch?v=BqXe2WUWCrE
https://obrazki.elektroda.pl/5626581800_1464806048.jpg

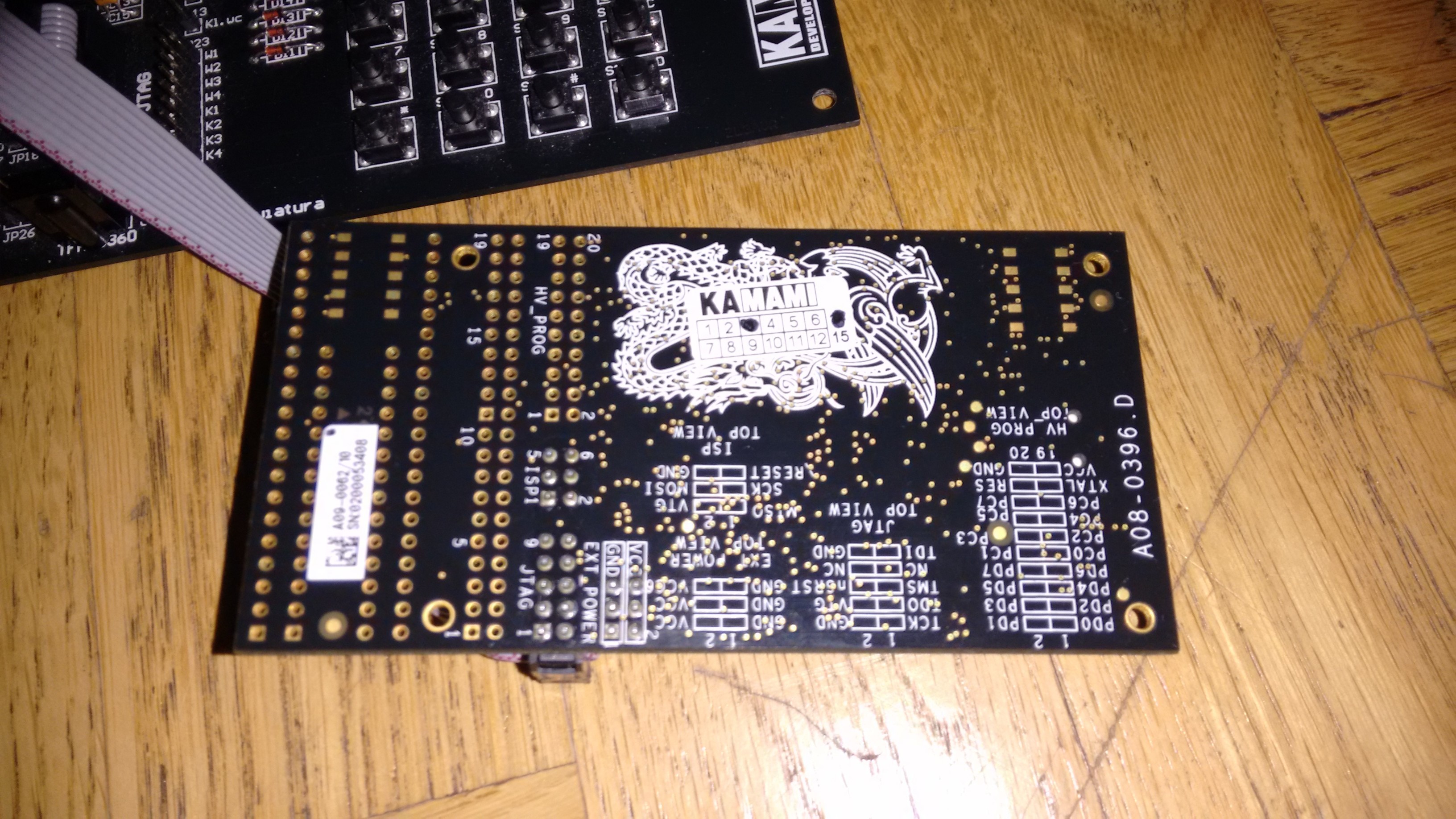

https://obrazki.elektroda.pl/8744640000_1464806050.jpg
https://obrazki.elektroda.pl/5179839100_1464806052.jpg
Proszę o pomoc... zadanie muszę oddać w najbliższy poniedziałek....
