[Solved] Renault Clio 2 1,2 8V - Koło pasowe na wale moment dokręcenia

Quote:

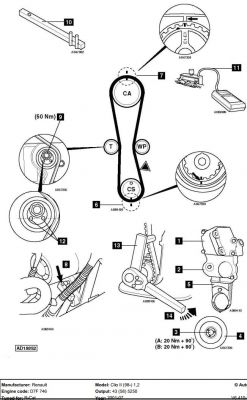

Installation
Installation
NOTE: DO NOT fit used belt.
1. Ensure timing marks aligned [6] & [7].
2. Ensure timing pin inserted in flywheel [8].
3. Fit timing belt in anti-clockwise direction, starting at crankshaft sprocket.
4. Ensure marks on belt aligned with marks on sprockets.
5. Ensure belt is taut between sprockets.
6. Temporarily fit crankshaft pulley centre bolt [3]. Lightly tighten bolt.
7. Attach tension gauge to belt at . Tool No.Mot.1273 [11].
8. Slacken tensioner nut [9].
9. Turn tensioner anti-clockwise until tension gauge indicates 20 units. Use tool No.Mot.1135-01 [10].
10. Tighten tensioner nut [9]. Tightening torque: 50 Nm.
11. Remove tension gauge [11].
12. Remove timing pin [8].
13. Turn crankshaft two turns clockwise to TDC on No.1 cylinder.
Ensure timing pin can be inserted in flywheel [8].
NOTE: Ensure timing pin removed.
14.
15. Ensure timing marks aligned [6] & [7].
16. Slacken tensioner nut [9].
17. Turn tensioner until holes are horizontal [12]. Use tool No.Mot.1135-01 [10].
18. Tighten tensioner nut [9]. Tightening torque: 50 Nm.
19. Turn crankshaft two turns clockwise to TDC on No.1 cylinder.
Ensure timing pin can be inserted in flywheel [8].
NOTE: Ensure timing pin removed.
20.
21. Ensure timing marks aligned [6] & [7].
22. Fit tensioning tool [13]. Tool No.Mot.1386.
23. Apply anti-clockwise torque of 10 Nm [14].
24. Remove tensioning tool [13].
25. Attach tension gauge to belt at [11].
26. Tension gauge should indicate 20±3 units.
27. If tension not as specified: Adjust tensioner manually. Use tool No.Mot.1135-01 [10].
28. Tighten tensioner nut [9]. Tightening torque: 50 Nm.
29. Turn crankshaft two turns clockwise to TDC on No.1 cylinder.
Ensure timing pin can be inserted in flywheel [8].
NOTE: Ensure timing pin removed.
30.
31. Ensure timing marks aligned [6] & [7].
32. Fit tensioning tool [13]. Tool No.Mot.1386.
33. Apply anti-clockwise torque of 10 Nm [14].
34. Remove tensioning tool [13].
35. Attach tension gauge to belt at [11].
36. Tension gauge should indicate 20±3 units.
37. If tension not as specified: Adjust tensioner manually. Use tool No.Mot.1135-01 [10].
38. Tighten tensioner nut [9]. Tightening torque: 50 Nm.
39. Install components in reverse order of removal.
40.
Manufacturer: Renault Model: Clio II (9 1,2
Engine code: D7F 746 Output: 43 (58) 5250
Tuned for: R-Cat Year: 2001-07

V6.410-Tighten crankshaft pulley centre bolt [3]. Tightening torque:
Except D7F 703: A - 20 Nm + 90°.
D7F 703: B - 20 Nm + 80°.
